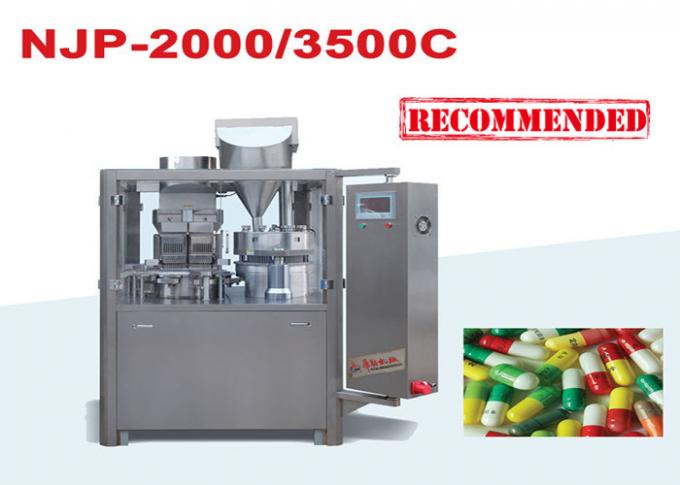

Pharmaceutical Larger Productivity Hard Gelatin Capsule Filling Machine

China Pharmaceutical Larger Productivity Hard Gelatin Capsule Filling Machine supplier
Pharmaceutical Larger Productivity Hard Gelatin Capsule Filling Machine supplier Pharmaceutical Larger Productivity Hard Gelatin Capsule Filling Machine supplier Pharmaceutical Larger Productivity Hard Gelatin Capsule Filling Machine supplier Pharmaceutical Larger Productivity Hard Gelatin Capsule Filling Machine supplier

Large Image :  Pharmaceutical Larger Productivity Hard Gelatin Capsule Filling Machine

Product Details:

Place of Origin: CHINA
Brand Name: HUALE MACHINERY
Certification: CE/ISO9001
Model Number: NJP-3500C

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: 1-50,000 usd/set
Packaging Details: EXPORTED WOODEN BOX.
Delivery Time: 55 working days after receiving machine deposit
Supply Ability: 5 Set per year
Contact Now
Detailed Product Description
Product Name: High Speed Auto Capsule Filling Machine Output: Max.210000 Capsules/h
Bores: 25 Capsule Size: No. 00#-4#
Vacuum Pump: Water Circulating Vacuum Pump Used: Powder/Granule/Double
Power Supply: 380V/220V 50Hz 10.5KW Control System: PLC Control System With Touch Screen

Product Name: Pharmaceutical Larger Productivity Hard Gelatin Capsule Filling Machine





Introduction for Pharmaceutical Larger Productivity Hard Gelatin Capsule Filling Machine



This is a newly created full-automatic closed intermittent capsule filling machine with multiple tamping stations.It completes the following process:feeding capsule,detaching capsule, filling, ejecting defective capsule,closing capsule, discharging finished capsule automatically.
This machine can be equipped with vacuumm loader for capsules and powder, which reduces the wokers cost, and all the operation is conducted on the touch screen, which is a highly automation machine of water, electricity and pneumatic.





Specifications For Pharmaceutical Larger Productivity Hard Gelatin Capsule Filling Machine



Item

NJP-3500

Output

210000 capsules/h

Bores

25

Rate of capsule filling

99%

Appropriate for capsule

00#-4#

Total Power

10.5kw

Noise standard

﹤75dB(A)

Fining Precision

>99.9%

Weight

2200kg

Dimension

1000*1300*1900mm





Description for Pharmaceutical Larger Productivity Hard Gelatin Capsule Filling Machine

  • Independentcontrol systerm , which make the main moter and the mechanical systerm is not mutual interference each other .
  • There is big resistance when the filling pole running up and down. to ruduce this resistance ,we adopt counterweight assistant .guaranteeing the machine running safely.
  • conditioning site adopt clear handspike enter into the lower module derectly and with the air . to make the power which is in the upper and lower module can be cleared in time . avoide the left powder influence the next station .
  • To increase the transmission torquemoment ,increase the diameter of the principal axis , to make sure the transmission more stablely and also increasing load resistor ability.
  • Die hole array with Back and forth derangement ,which is greatly increase the powder filling precision ,make sure the filling capcity is more exactly .
  • Adopt multiholedoctor brade , make the podwer can be dispersed equably on the dosing disc , which is more favorable for the capacity exactly .
  • New stucture twelve state totally closed batch type rotating floor .upper and lower module uni-directional running is safe and reliable . totally closed structure make the products prevent the lubrication oil from pullution .accordong with GMP.
  • Simplify quibcunx leveling stucture and upper base . which is convience to cleaning the spread powder and increasing the work efficiency .
  • Batch gas auxiliary system for exhausting capsule , avoid exhaust long time and without a break .
  • Accurate orientation, Capsule vacuum positioned mechanism to make the capsule upload percentage over 99%.
  • Freely adjusting dosage, easy speed selection and closed capsule length adjustment.
  • PLC program control panel with LCD.touch screen operation, and monitoring function.
  • Displaying in-time speed and accumulative output.
  • Auto-trouble shooting,lack of material, lack of capsule, block in material channel and other mechanical trouble, make alarm and stop automatically.
  • Electrical Appliance control system approved to CE, and international standard.
  • Quick and accurate change part set-up, easy to remove rotary table and ring carrier assembly.
  • Fully enclosed dosing stations and rotating table for integration of the whole capsule filling plants.
  • Working station cam runs under the good lubricating condition, extends the operating life of change parts.cam is made by USA HASS CNC and Germany DMG machine.

Pharmaceutical Larger Productivity Hard Gelatin Capsule Filling Machine



After service

Pharmaceutical Larger Productivity Hard Gelatin Capsule Filling Machine

For the big problem that you can not resolve by yourself, our engineer was available to go over seas for helping you to resolve the problem. For small problems, we can take the video and pictures to guide you how to adjust and fix the machine. We have professional after service team which could help you to resolve the problem within 24 hours.





WARRANTY

  1. Technical Support(24 hours on line support by emails, skype, MSN, mobile).
  2. Loading inform(loading port, destination port, shipping date, CBM, weight, etc.)
  3. Video for debugging after sent products.
  4. Pre-maintance.
  5. Quality guarantee for 1 year. Within warranty period, we provide spare parts for replacement free if not man-factor.
  6. Welcome send us samples to test on our machine and we will take video for you to confirm.
  7. Welcome visit our factory for checking machine and offer training course for your workers.
