DPP-350A large Automatic Blister Packing Machine For Capsule / Tablet / Pill
Detailed Product Description
||Blister Packing Machine
||Max.45cutting/min About 400000 Capsules/day
||Step Motor Driving Or Servo Motor Driving
||Imported PLC Control
||Used For PRC System
||Pill Or Capsule Or Tablet， Food Etc.

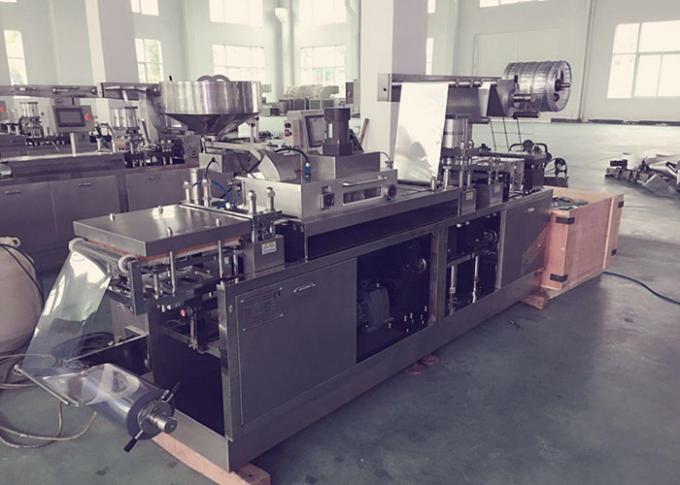

DPP-350A Large Automatic Blister Packing Machine For Capsule / Tablet / Pill
This machine is designed by requirement of "big sheet, deep bubble", it's suitable for packing capsule, tablet, penicillin bottle, oral liquid, candy and irregular shaped AL/PVC, PVC/PAPER package in medicine, food, electronic, medical instrument etc industries, also suitable for health products, light industries package.
Max. Forming Area and Depth
Adjustable Scope of Travel(mm)
380V 50Hz 9.5kw
380V 50Hz 8kw
380V 50Hz 5.5kw
Recycle water or
circulating water consumption
Overall Dimension(L*W*H)(including foundation)
Dimension of Each Part
- Blister forming, hot-sealing, lot number printing, avulsion line impressing and cutting etc all adopt mandrel orientation, each can move freely in the mandrel when shaking the hand wheel, and the bliser packing machine has staff gauge, easy to adjust and exact orientation.
- Manipulator towing adopted culms double pendulum device, increased traction adjustable scope of the itinerary (it can get to 180mm), which can fit for medicine-card packaging of different sizes. The blister packing machine can registration heating, positive forming, up and down moiré, air cylinder heating sealing, automatic feeding, automatic lot number printing, automatic cutting die, easy to operate and credible running.
- Forming positive pressure air distribution with mechanical punch, ensuring blister forming well, and could collocate exclusive Automatic Feeder. The blister packing machine could fit for the packaging of ampoule, needle, Xilin Bottle, big honey pill, medicine machine and some special shape etc.
- Main transmission part adopts parallel axis and bevel wheel speed reducer, forming dies and hot-sealing dies and impressing dies adopt bolt orientation, with exact orientation, easy to change dies and material saving.
- Detachable design make the blister packing machine can be easily carried and installed according to the requirement of user.

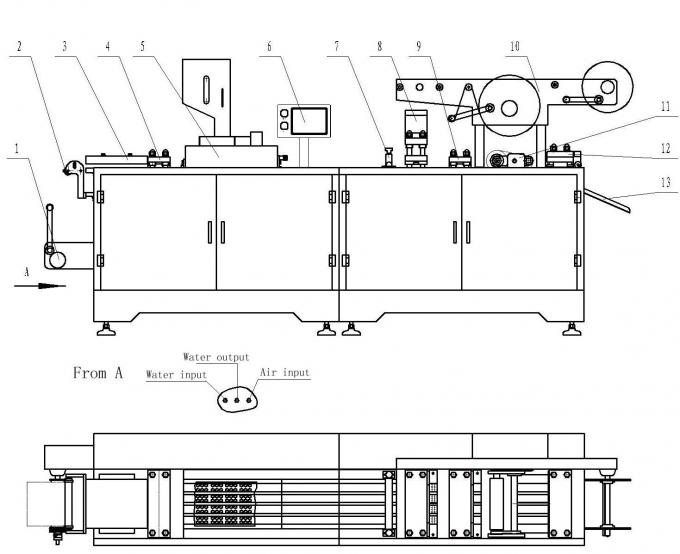

1: PVC feeder
2: PVC transporting roller
3: Heating box
4: Forming mechanism(the material of punch head is PTFE)
5: Medicine feeder
(The manual feeding without this station)
7: PTP transporting roller
8: Heat-sealing mechanism
9: Trace-pressing mechanism
10: PTP feeding mechanism & scrap-collector
11: Tow mechanism
12: Blanking mechanism
13: Finished product output
- Technical Support(24 hours on line support by emails, skype, MSN, mobile).
- Loading inform(loading port, destination port, shipping date, CBM, weight, etc.)
- Video for debugging after sent products.
- Quality guarantee for 1 year. Within warranty period, we provide spare parts for replacement free if not man-factor.
- Welcome send us samples to test on our machine and we will take video for you to confirm.
- Welcome visit our factory for checking machine and offer training course for your workers.
