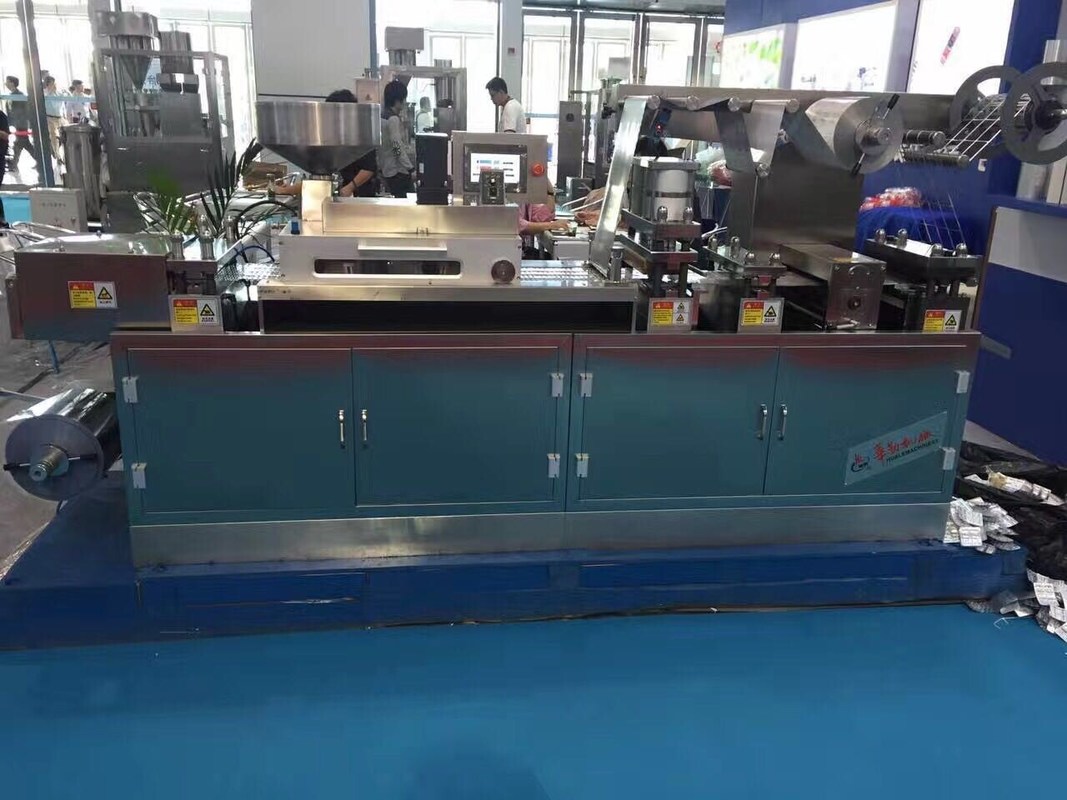

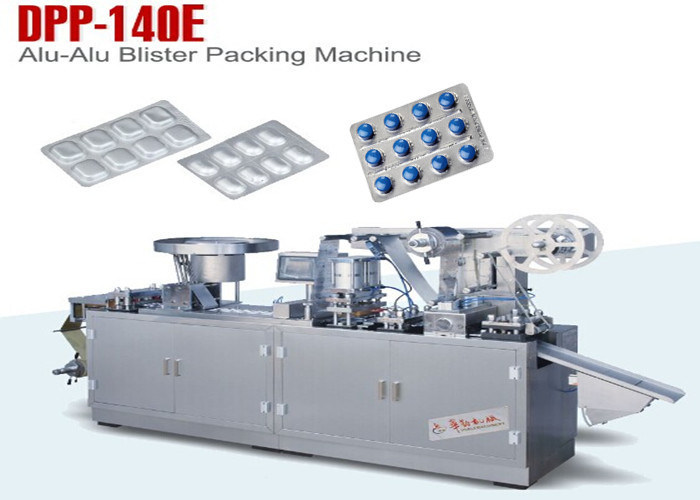

High Sealed Automatic Alu Alu Blister Packing Machine / Tablet Blister Packaging Machine
This machine is suitable for pack capsules and tablets which request high packaging standard to protect its quality and extend expiration date. This machine combined with two function:aluminum foil cold forming blister and PVC thermal forming blister. The two functions transform by changing modules.
Machine Body Material
Adjustable pulling length
Design According To Customers’ Requirements
Max Forming area and depth(mm)
(Recycle water or circulating water consumption)
Power supply(Three phase)
380V/220V 50HZ 3KW
380V/220V 50HZ 5.5KW
Wrapper specification (mm)
Alu Alu Foil
Dimension of Each Part
Main motor adopts inverter speed controlling system.
and high efficiency feeding. It is suitable for different blister plate and irregular shape objects.
Adopting independent guiding track. The moulds are fixed by trapezoid style with easier removing
It adopts newly designed double hopper feeding system with high precision optical control for
The machine will stop automatically once the materials are finished. Also it has installed emergency
Organic glass cover is optional.
When make ALU ALU product:
Turn off No.2 (Heating box),change the feeder to shaking type feeder and change molds(Forming up and
down molds, sealing up and down molds, blanking up and down molds)
When make ALU PVC product: Turn on all of the stations.
The machine will not be shaking in transport with wooden fixed.
The machine will not be affected with damp in transport with packed with PE plastic bags.
Easy shaking station will fixed with hard rope.
Long machine will packed separatly.
If there are strict requirements, chassis can use iron girders.
